How you can quickly and easily change the filter insert in your CJC® Oil Care System

Instruction: Replacement of CJC® Fine Filter Insert — Type 15/25

Download instruction

Watch video tutorial

Warning triangle

Warning not "hot surfaces"

WARNING

HOT SURFACES

Piping and filter housings may contain hot fluid. Contact can cause burns.

Instruction note "Switch off system"

Switch off CJC® Oil-Care System.

Aerate CJC® Oil Care System.

Open bleeding and venting valve.

Version with automatich bleeding and venting valve:
Ensure that shutt-off valve is open.

Open venting screw, replace CJC Filter Insert 15/25

Version with venting screw:

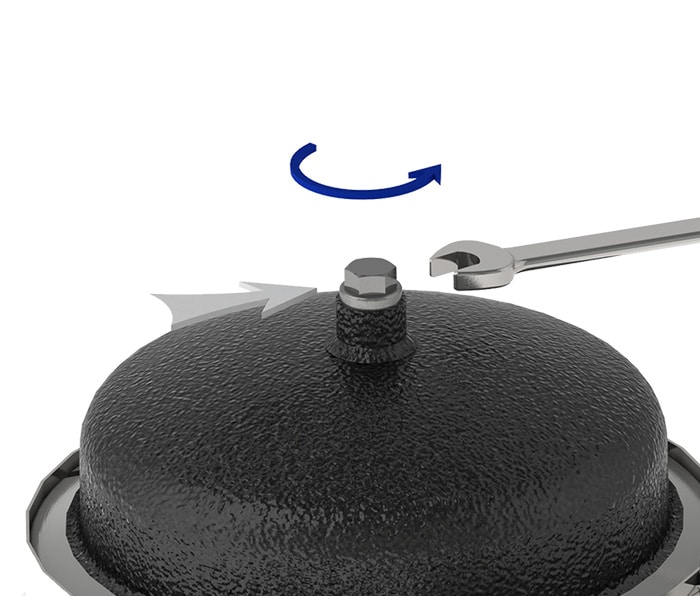

Open venting screw.

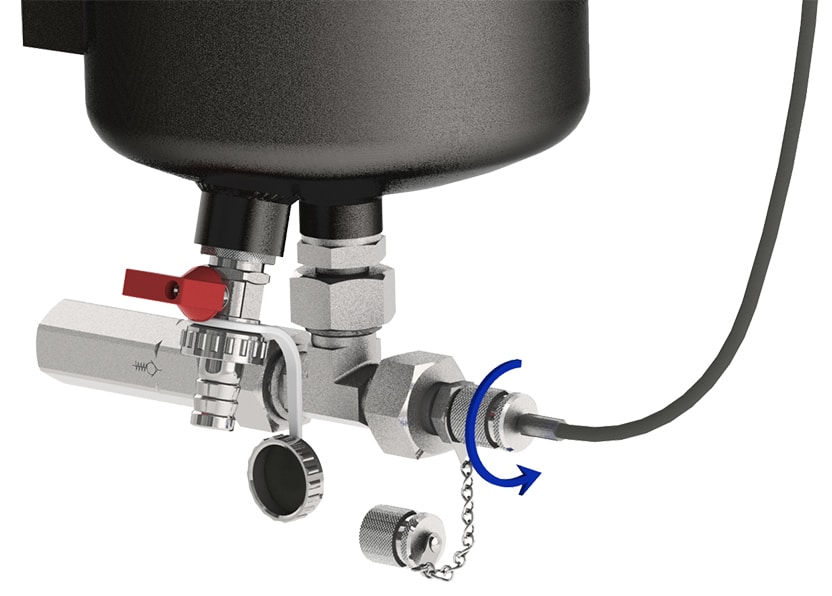

Loosen permanent venting, repclace CJC Filter Insert 15/25

Version with permanent venting:
Loosen permanent venting at filter base.

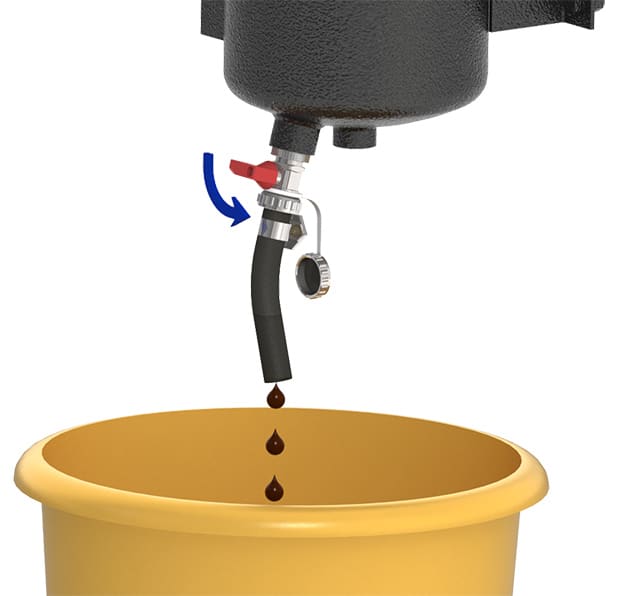

Drain CJC Oil-Care System 15/25

Drain CJC® Oil-Care System.

Close draining valve immediately after draining.

Open clamp, CJC Oil-Care System 15/25

Open filter housing.

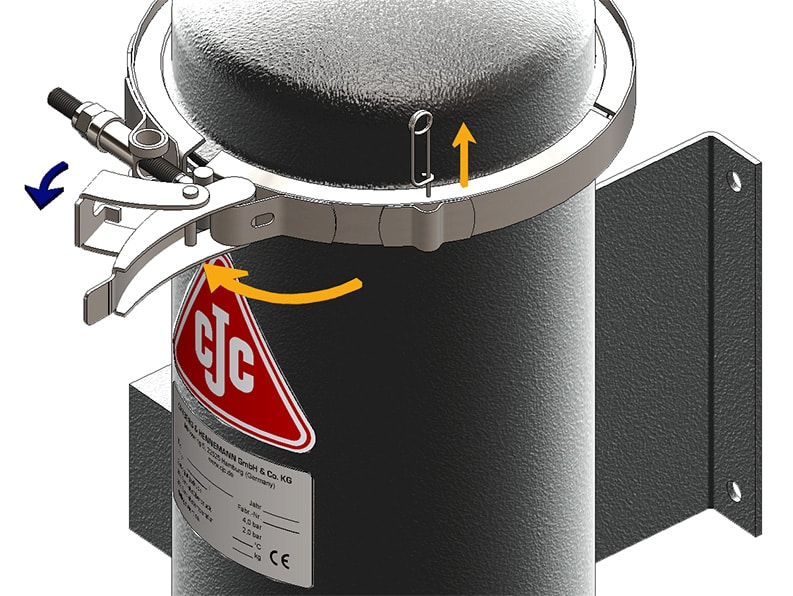

Open clamp.

Dismantle filter top cover, replace CJC filter insert 15/25

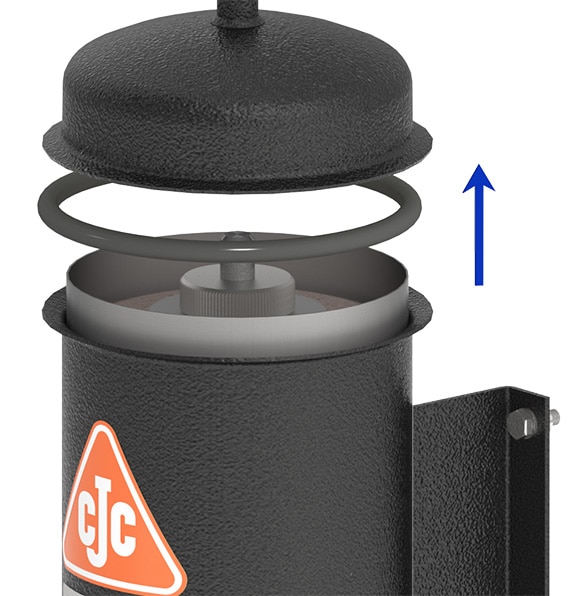

Dismantle filter dome.

Make a visual inspection of the sealing

and if necessary, replace.

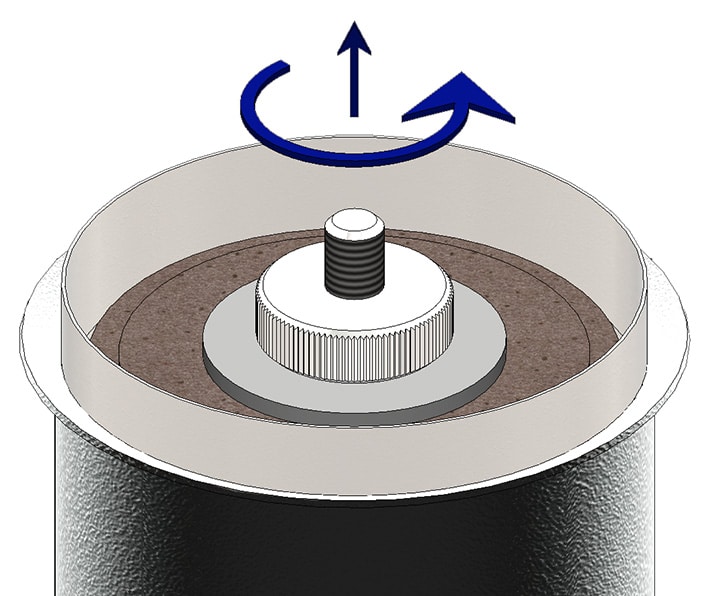

Loosen tightening nut.

Lossen tightening nut.

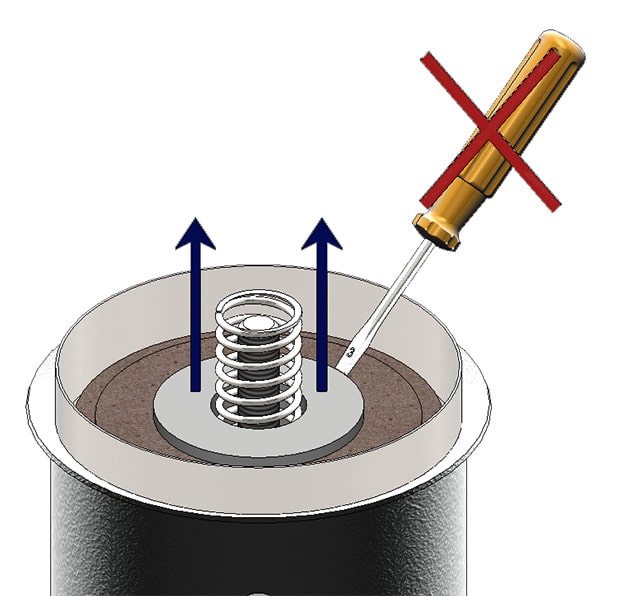

Remove compression spring and spring sleeve.

Remove compression spring and spring sleeve.

Do not damage the sealing edge.

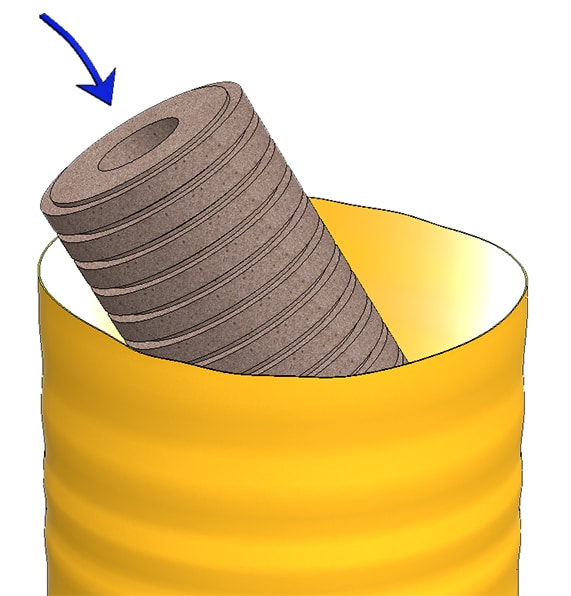

Dispose filter insert 15/25

Dispose of contaminated CJC® Fine Filter Insert.

Clean CJC Oil-Care System

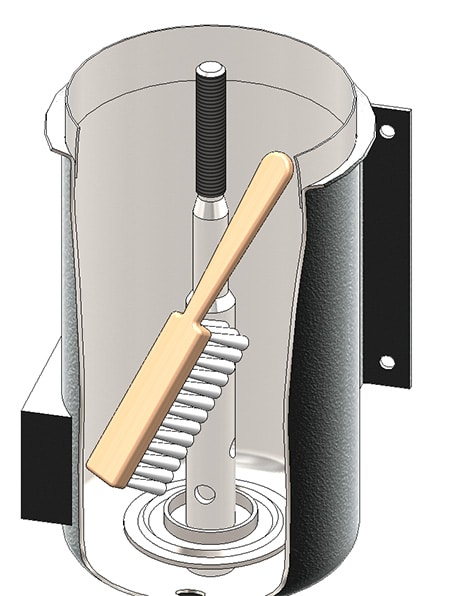

Clean filter bottom.

Without using solvent.

Make a visuel inspection of sealing, filter insert replacement 15/25

Insert new CJC® Fine Filter Insert

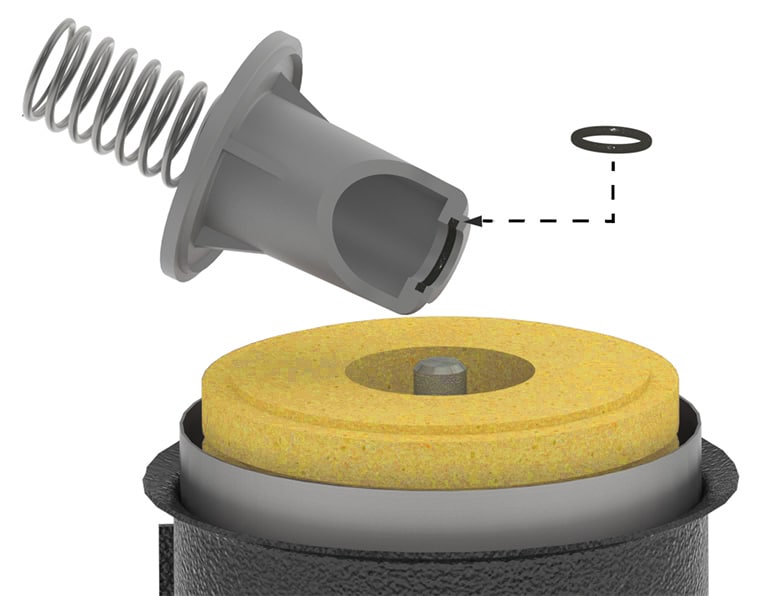

Make a visual inspection of the sealing int the spring sleeve

if necessary, replace.

Insert new CJC Fine Filter Insert 15/25, filter insert replacement

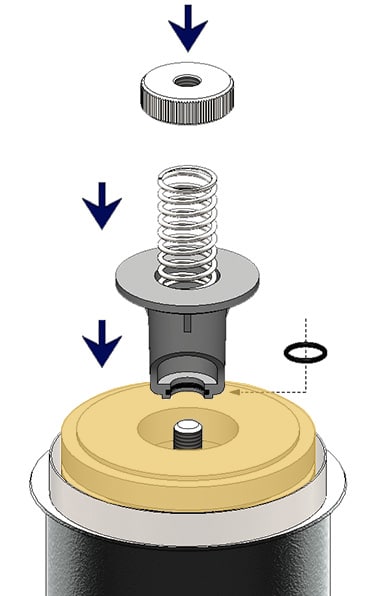

Assemble spring sleeve, compression spring and tightening nut.

Tighten tightening nut, filter insert replacement 15/25

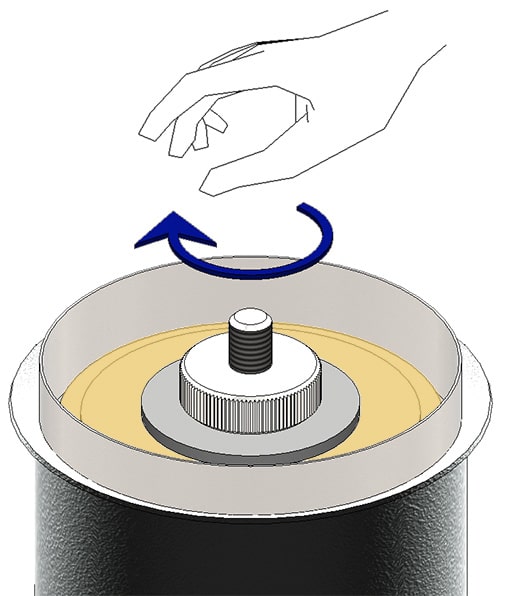

Tighten tightening nut (12 Nm).

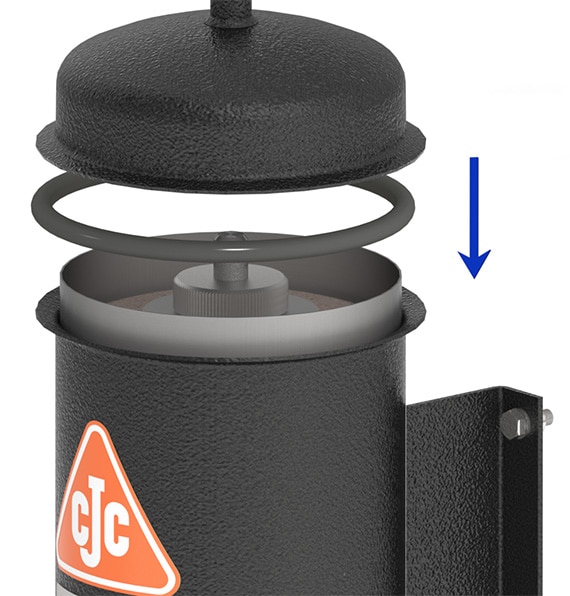

Place filter dome, filter insert replacement 15/25

Mount filter cover.

Close clamp, replace CJC filter insert 15/25

Close clamp.

Instruction note "Switch off system"

Take CJC® Oil-Care System into operation.

Deaerate filter housing.

Open bleeding and venting valve.

Version with automatic bleeding and venting valve:
Leave shut-off valve open or, if necessary close.

Close venting screw, CJC Oil-Care System 15/25

Version with venting screw:

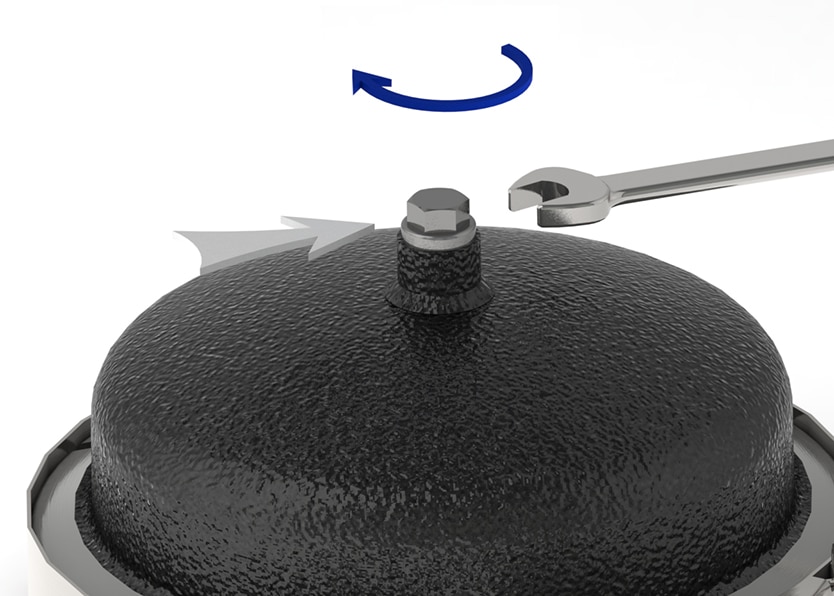

Close venting screw.

Reassemble permanent venting, replace CJC filter insert 15/25

Version with permanent venting:

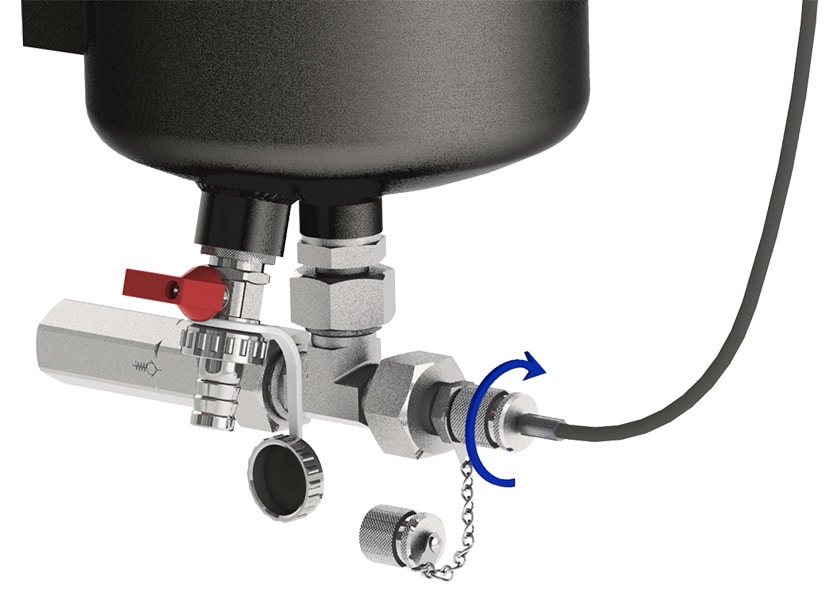

Reassemble permanent venting.
