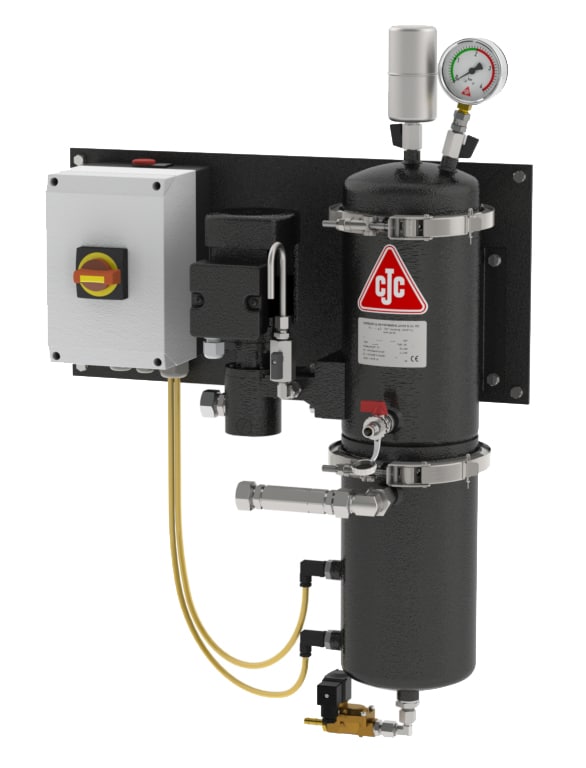

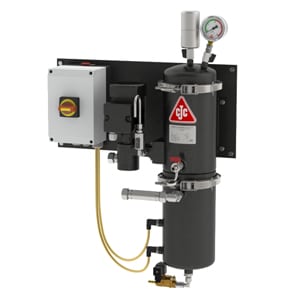

Filter Separator 15/25

The CJC Filter Separator 15/25 is an offline filter which due to the unique combination of filter material and filtration type simultaneously removes large amounts of water, particles, oil ageing products (oxidation products, varnish, sludge etc.) and acid compounds from the oil with extremely high efficiency.

For large amounts of water in the oil or continuous water ingress in the oil system the CJC Filter Separator 15/25 is the appropriate solution for simultaneous drying and fine filtration of the oil.

CJC Fine Filter Inserts are the only filters in the worldwide that, combines with an exceptionally high dirt holding capacity, simultaneously minimize all four types of contamination and consist of 100 % renewable raw materials.

TYPICAL APPLICATIONS WITH HIGH WATER INGRESS

Lubrication oil (thrusters, stern tubes, rolling mills etc.)
Hydraulic oil (machine tools, mobile hydraulic, small hydraulic systems etc.)

ADVANTAGES CJC FILTER SEPARATOR 15/25

longer lifetime for oil and components
less oil-related, cost-intensive machine failures
simultaneous removal of large amounts of free water as well as particles, oil ageing products and acid compounds
high filter efficiency by continuous fine and depth filtration combined with coalescing filtration, independent from the operation of the machine
constantly high oil cleanliness
longer service lifetime of the expensive in-line filters
optimum filtration performance by the specifically dimensioned pump

The constant high oil cleanliness level permanently achieved by off-line fine filtration prolongs the lifetime of system components and oil by a factor 2 up to >10 and more!

Technical data
CJC Filter Separator	15/25
Oil volume, max.	1,500 l
Design temperature	80 °C
Material filter housing	Steel
Pump flow	application-oriented, max. 180 l/Std.
Power consumption, approx.	0.18 kW
Design pressure, max.	2 bar
Filter inserts	1 piece
Filter capacity – CJC Fine Filter Inserts 15/25
Filtration degree	3 down to 1 micron
Dirt holding capacity, approx.	1.1 kg
Water separation	automatic
Equipment/Certification
Standard	Pump with motor Electrical control Automatic bleeding and venting valve for quick filter insert replacement Pressure switch for monitoring the degree of saturation of filter inserts Non-return valve to avoid return flow Base plate Sampling point
Optional	Leakage sensor Preheater Manual water separation Design for high fluid temperatures and pressures
Certification on request, e. g.	DNV-GL Bureau Veritas ABS Lloyd’s Register

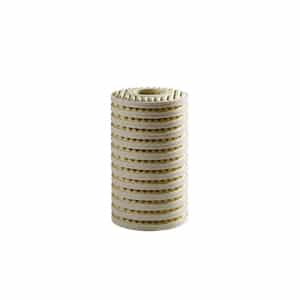

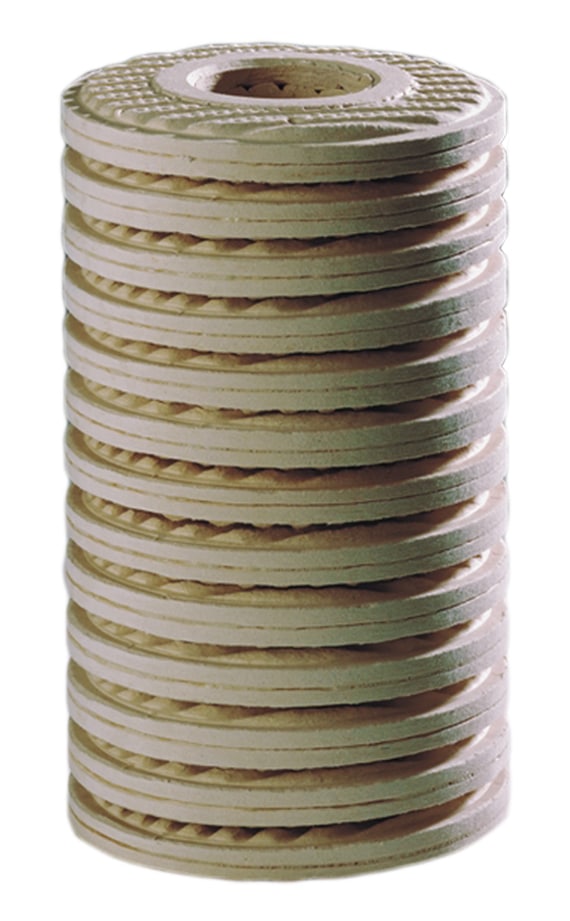

Fine Filter Inserts 15/25
