Remove free, emulsified and dissolved water from the oil — as well as particles and oil degradation products
Desorber Filter Unit D10 from CJC®: Your solution for absolutely dry and clean oil

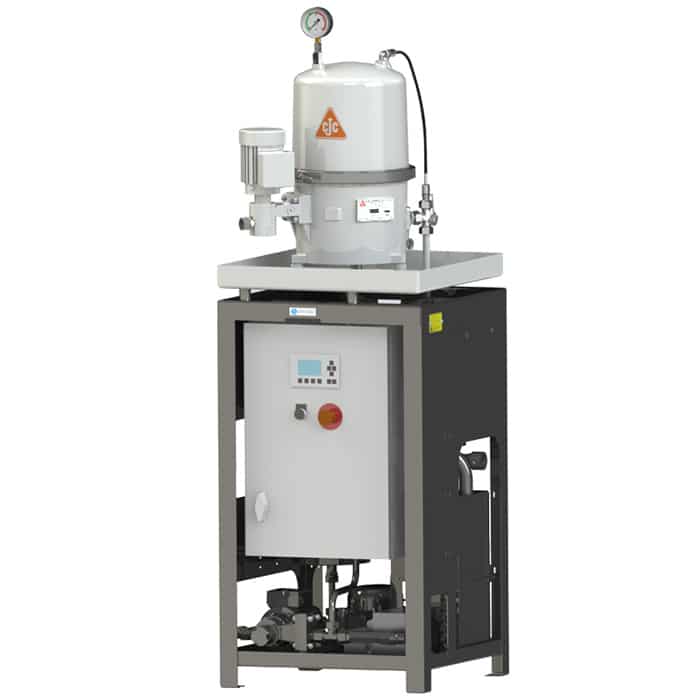

Desorber-Filter-Unit D10
CJC® Desorber Filter Units D10 reduce the water content in your oil to < 100 ppm within a very short time. It removes free, emulsified and dissolved water from the oil. At the same time, the integrated fine filter minimizes the content of particles and oil degradation products (acids, varnish, sludge). Ideal for hydraulic oils, gear oils and lubricating oils, whether based on mineral oil or as synthetic fluids. Even stable emulsions with a water content of up to 70% can be dried and processed. Thanks to the installation in a separate circuit in the bypass flow or on a free-standing tank, oil drying and fine filtration are carried out continuously and independently of the operation of the machine. Oil drying by desorption is also independent of viscosity, additives and air content in the oil.
How to benefit from installing a CJC® Desorber Filter Unit D10 on your machine
Keeping oils and fluids as clean and dry as possible is the be-all and end-all for reliably functioning machines and smooth processes.

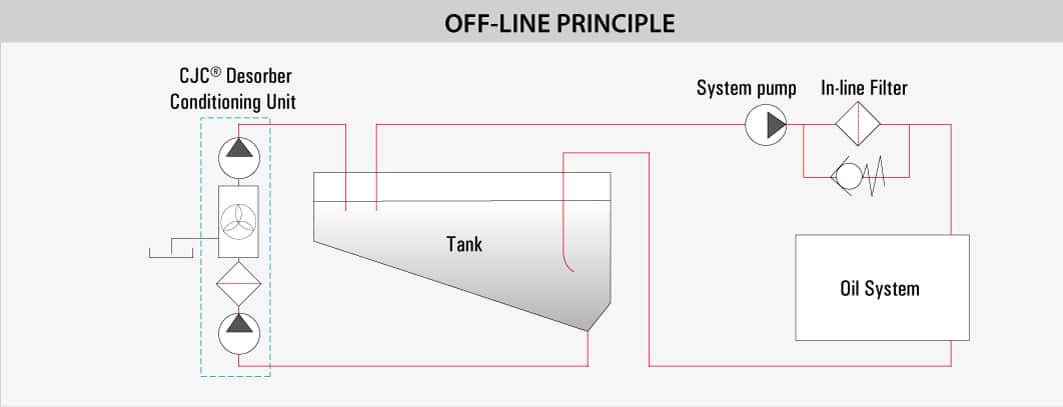

Application areas & installation example — Desorber-Filter-Unit D10
Especially in the paper, steel, plastics and metal processing industries, as well as in maritime applications, there is a high risk of water entry into the oil systems due to environmental and process conditions.
Fine filter system:
The pump in the oil inlet sucks in the oil. In the first stage, the fluid flow passes through the filter with the integrated fine and depth filter cartridge before it is fed into the desorber chamber in the second stage. Water but also particles in the oil accelerate the degradation of base oil and additives (oil ageing). The filter removes particles and already by oil degradation processes formed reaction products.
Desorber:
In the desorber chamber, the still moist, warm oil meets a counterflow of cold, dry air. The oil heats the cold air, which allows it to absorb a lot of moisture (system pressure constantly low < 2 bar). In a subsequent process, the warm, moist air cools down again, and the water condenses.
Features — Desorber-Filter-Unit D10
Oil volume, dimensioning e.g.: 1,500 Litres
Installation: flexible, e.g. in the off-line circuit
Design temperature: 60 °C
Viscosity range: up to ISO VG 320
Water content in the oil, max.: 700,000 ppm (70%)
Water separation: water content permanently < 100 ppm (0.01%)
Dirt holding capacity: up to 12 kg
Filtration degree, max.: 3 μm absolute to 1 μm
Fine and depth filter insert: 1 piece
Supply voltage: 1 x 208 V/60Hz, 1 x 230 V/50—60 Hz, 3 x 400/50Hz or 3 x 440—480 V/60 Hz
Power consumption: 2.7 kW at 208 V, 2.9 kW at 230 V or 3.2 kW at 400 V and 440—480 V
Current: 15.5 A at 208 V, 12.5 A at 230 V or 5.1 A at 400 V and 440—480 V
Pump flow (24/7): 45—55 Litres per hour
System pressure (oil inlet), max.: 0.5 (PV) or 3.5 bar (PVM)
Weight, approx.: 170 kg
Dimensions, L x B x H: 570 x 570 x 1,635 mm
Equipment:
Standard:
- Pump with motor
- electrical control with an integrated alarm system
- Leakage monitoring
- Sample point for oil and fluid analysis
- automatic water separation
Download product data sheet:
All sizes and variants — without and with depth filter
That say our customers
“I am completely satisfied with the investment. Oil drying takes place very quickly and without machine downtime. Thus, we keep the production stable, have time to look for the failure cause, avoid the oil change and waste oil disposal, and maintain the oil quality.”
“The Desorber works excellently in this application. I was impressed by the results and surprised how efficiently the Desorber dewatered the oil. The Desorber is easy to operate and is low-maintenance.”
“The CJC® Desorber allows us to operate the tug boat until the regular inspection in the dry dock in 6 months. The oil analysis results speak for themselves and substantiate the efficiency of the Desorber.”
“It was only with the Desorber that the gear oil could finally be dried satisfactorily. Without CJC®, we would have had to change the 1,500 litres of gear oil soon. By avoiding the oil change, we were able to save EUR 4,890 (EUR 3.26/litre) – an important contribution not only in terms of budget but also in terms of resource savings. The excellent results convinced us, so we decided to purchase two identical Desorbers for our tug boats, “Bugsier 5” and “Bugsier 6”.
“The Desorber is ideal for such operations because it works continuously while the vessel is at sea. The results are very satisfactory. The Desorber works very well and will further reduce the water content.”
